Establish What “As Built” Means for This Assignment
As-built requirements differ. A contractor may need a close-out drawing set, while a facility team may require current floor plans for maintenance, leasing or a planned renovation.
The opening review establishes:
- Buildings, levels and areas included
- Purpose of the updated record
- Authoritative base drawings or models
- Survey, measurement and field-markup sources
- Construction redlines and approved changes
- Disciplines included in the package
- Required CAD or Revit standards
- Areas that were inaccessible or unverified
- Client review and sign-off responsibilities
- Native, PDF and model delivery formats
This scope prevents the final package from claiming more certainty than the supplied evidence supports.
Existing Condition Drawings for Occupied and Altered Properties
Existing condition drawings can support renovations, facility planning, lease discussions, space management and due-diligence review.
Plans may show current partitions, doors, windows, stairs, rooms, fixtures and other architectural information included in the verified survey. Elevations, sections or ceiling information can be added when the source material supports them.
Concealed construction and inaccessible areas remain outside the record unless reliable documentation is supplied.

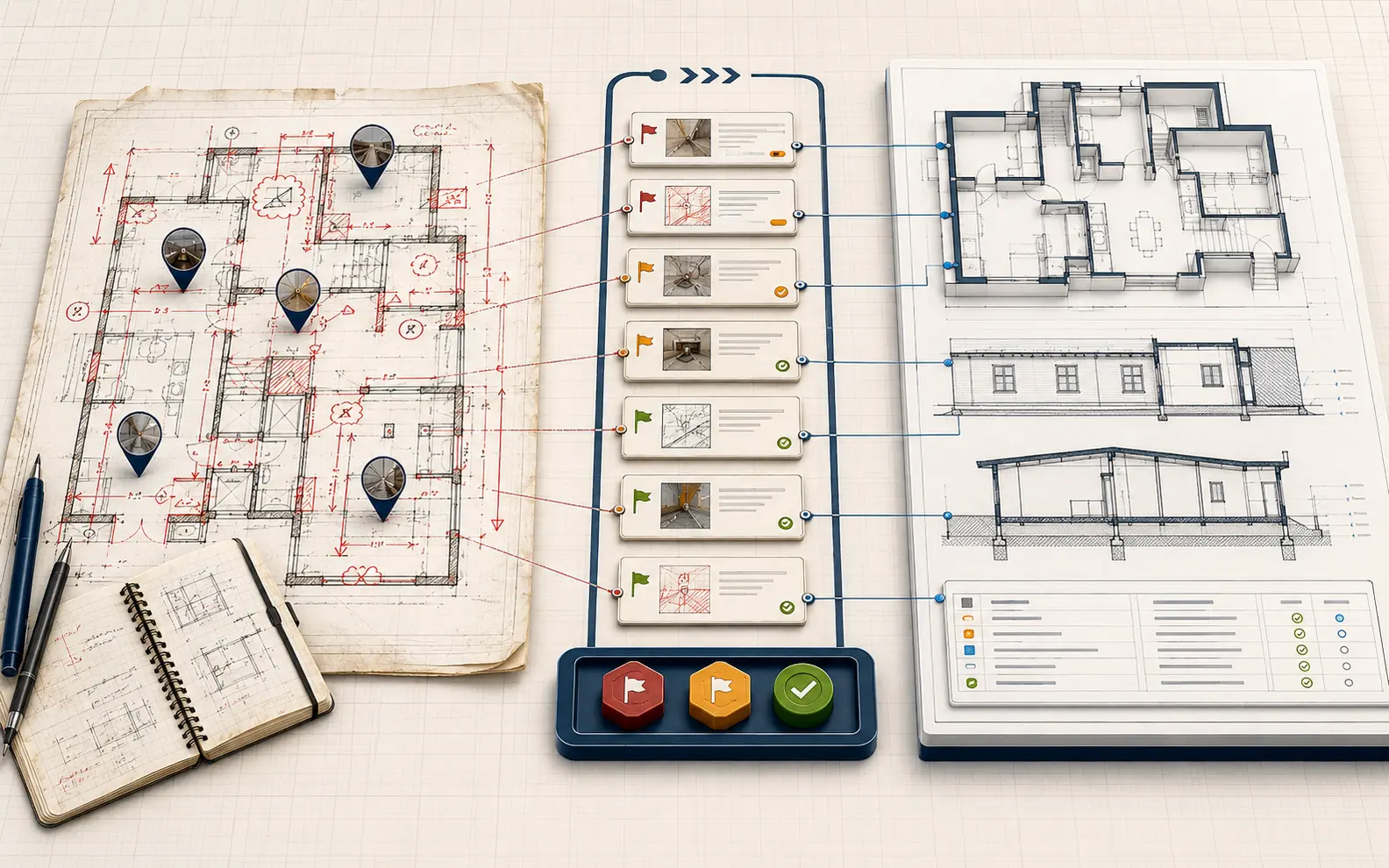

Convert Redlines to As-Built Drawings without Losing the Change Trail
The conversion of redline to as-built drawings requires more than tracing coloured marks. Each markup must be legible, associated with the correct base revision and understood in relation to nearby dimensions and notes.
We identify incomplete, overlapping or contradictory redlines before production. Approved changes are entered into the relevant plans, elevations, sections, details or schedules while the original markup remains part of the project record.
This preserves the reasoning behind the update instead of leaving only a clean drawing with no visible source history.
Measured Building Drawings with Clear Survey Responsibility
Measured building drawings translate verified dimensions and observations into organised architectural records.
The surveyor or client-appointed field team is responsible for measurement method, instrument control, accessible areas and site accuracy. Our role is to draft the supplied measurements, compare them with existing information and identify relationships that do not reconcile.
Datum, grid, units and agreed tolerance are established before large drawing sets are updated.
Renovation As-Built Plans for Changed Spaces
Renovation as-built plans may document new partitions, altered doors, revised room uses, changed finishes, ceiling work or other completed architectural modifications.
The record can begin from contractor redlines, approved change documentation and a post-work survey. Demolished elements are removed only where the supplied evidence confirms their absence.
Where earlier building conditions remain outside the renovation scope, the drawing notes distinguish inherited information from newly verified work.
Floor Plan Updates for Facilities and Property Teams
Floor plan updates can support occupancy records, maintenance, asset planning, leasing and future project preparation.
Room numbers, names, areas, partitions and openings are coordinated with the client’s current information system where included. A change to one space may also affect area schedules, room registers, door references or related detail callouts.
The update matrix identifies these dependencies before the revised plan is issued.
AutoCAD As-Built Plans in Existing Client Standards
AutoCAD as-built plans can follow supplied layers, title blocks, text styles, dimensions, external-reference structures and plotting conventions.
The base files are reviewed for units, coordinates, reference paths and revision status. Updated content is placed within the approved layer and annotation structure instead of applying a generic CAD standard without agreement.
Published PDFs are compared with native drawings to confirm that references, linework and notes display correctly.
Revit Existing Building Model from Verified Inputs
A Revit existing building model can represent current walls, floors, roofs, openings, rooms and selected architectural elements to an agreed level of detail.
Model development may use survey drawings, point-cloud interpretation supplied within scope, existing CAD files and verified site records. Phasing, element status, coordinates and client parameters are agreed before production.
The model does not independently verify hidden assemblies or conditions absent from the survey.
Final Construction Record Drawings for Project Close-Out
Final construction record drawings may consolidate authorised contractor markups, architect-issued changes and accepted site records into a controlled close-out package.
The word “final” refers to the client’s approved issue status. Our team does not determine whether all work has been surveyed, whether every change was recorded or whether the package satisfies a contractual requirement.
The appointed project authority reviews completeness and approves the title-block status before formal release.
Site-Verified Building Documentation without Remote Certification Claims
Site-verified building documentation should identify who performed the verification, when it occurred and which areas were inspected.
We can incorporate information certified or approved by the client’s surveyor, contractor, architect or facility representative. Drawing notes and registers can preserve the supplied verification status.
Our external-production team does not describe remotely drafted information as site-verified unless the client has provided the corresponding authorised record.
AI-Assisted Comparison with Human As-Built Review
For as-built drawing work, automation can index sheets, surface revision differences and transcribe selected typed or scanned notes. A person still decides whether each observation is reliable enough to enter the record set.
AI does not decide which field measurement is correct, interpret an unclear redline or certify that a condition exists on site.
An expert CAD lead reviews source authority and markup quality. A second specialist checker compares revised drawings with the supplied evidence, while an experienced coordinator tracks unresolved conditions. A professional reviewer verifies drawing status, file organisation and handover completeness.

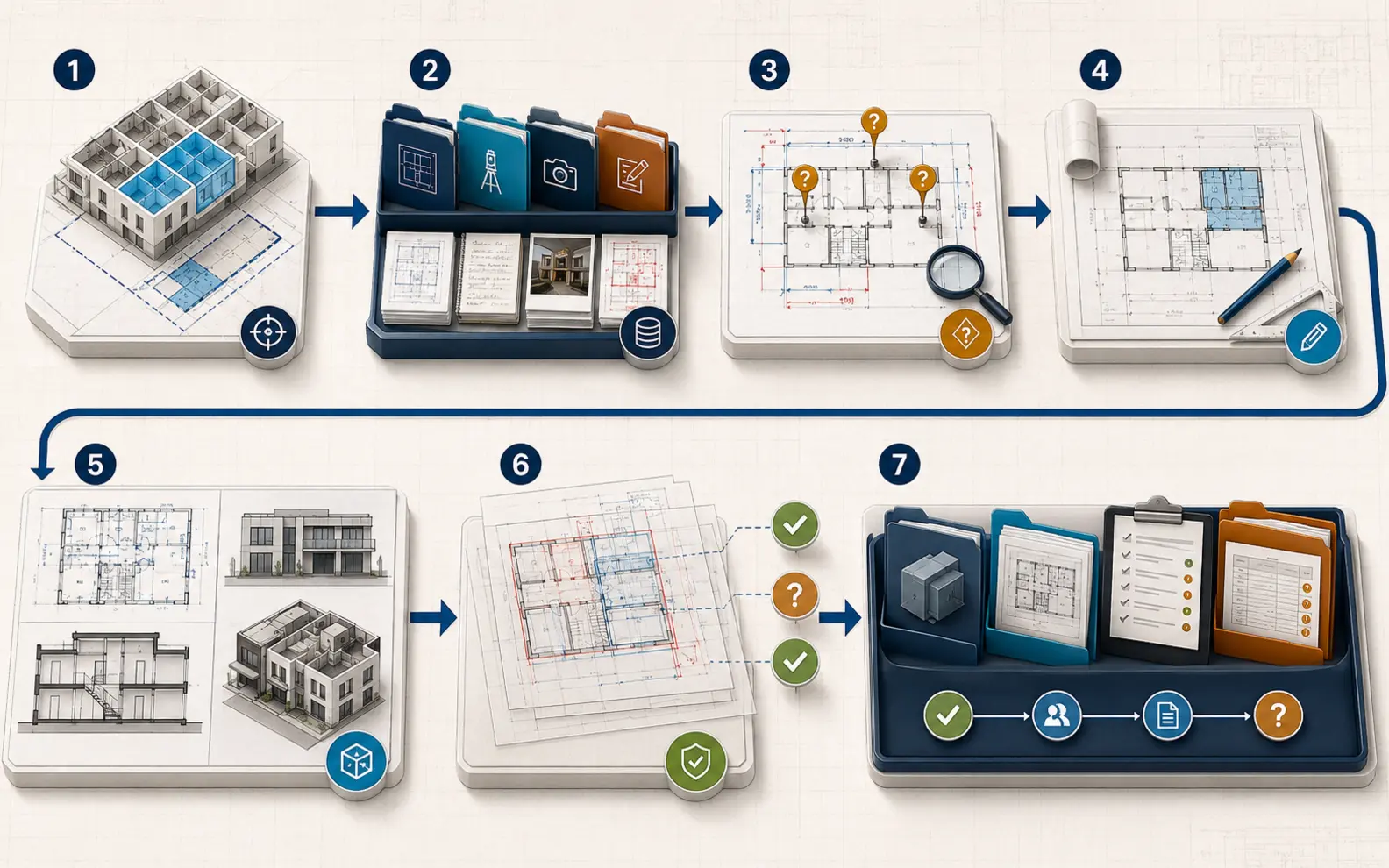

A Verification-Led Path from Field Evidence to Record Files
Source Register
Base files, surveys, redlines, photographs and change records are organised by origin and revision.
Discrepancy Review
Conflicting dimensions, unclear markups and missing area information are returned for clarification.
Representative Update
A sample area confirms drafting standards, notation and the treatment of verified and inherited information.
Controlled Record Production
Approved changes are incorporated across related plans, elevations, sections, details or schedules.
Evidence Comparison
The revised outputs are checked against the authorised markup, survey or change register.
Status-Based Handover for Architectural As-Built Drawing Services
Native files, PDFs, revision information and unresolved-condition records are delivered together.
This creates an architectural as-built drawing solution that preserves the relationship between the building record and its supporting evidence.
