Shop drawings sit between design intent and site execution. They must explain how approved mechanical, electrical, plumbing and fire-protection systems are arranged within real building constraints. That does not make them self-approving documents: contractor methods, products, calculations and coordinated changes still require review by the responsible project parties.
CAD Conversion Services India provides MEP shop drawing services for main contractors, specialist trades, consultants and construction teams. We prepare coordinated plans, sections, details, schedules and builder’s-work information from approved contract documents, equipment data, coordination decisions and trade instructions.
Our offshore team does not independently change system design, select products, calculate capacities, approve supports or release drawings for installation. Those responsibilities remain with authorised engineers, contractors, fabricators and project reviewers.
Clients can outsource MEP shop drawing production when internal teams need additional documentation capacity around coordination and submission deadlines. AI-assisted comparisons may support revision checks, while an expert reviewer evaluates the final package.
Confirm these essentials before production begins.
Approved discipline designs, equipment data, backgrounds and coordination standards
MEP drawings, models, schedules, coordination views and record updates
AutoCAD, Revit and approved review tools
Installation-focused sheets derived from approved designs and coordination; engineering approval remains with the responsible party.

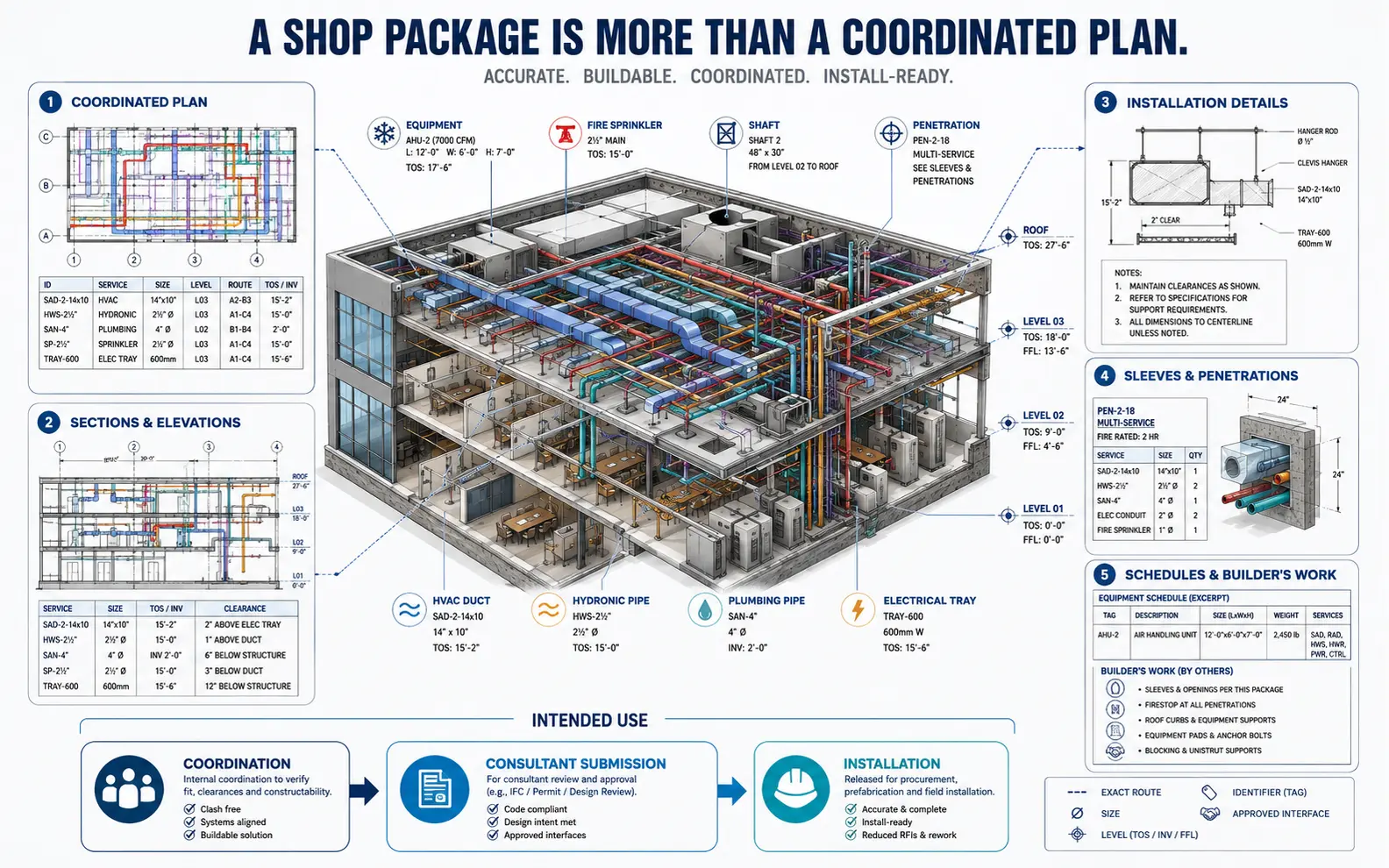

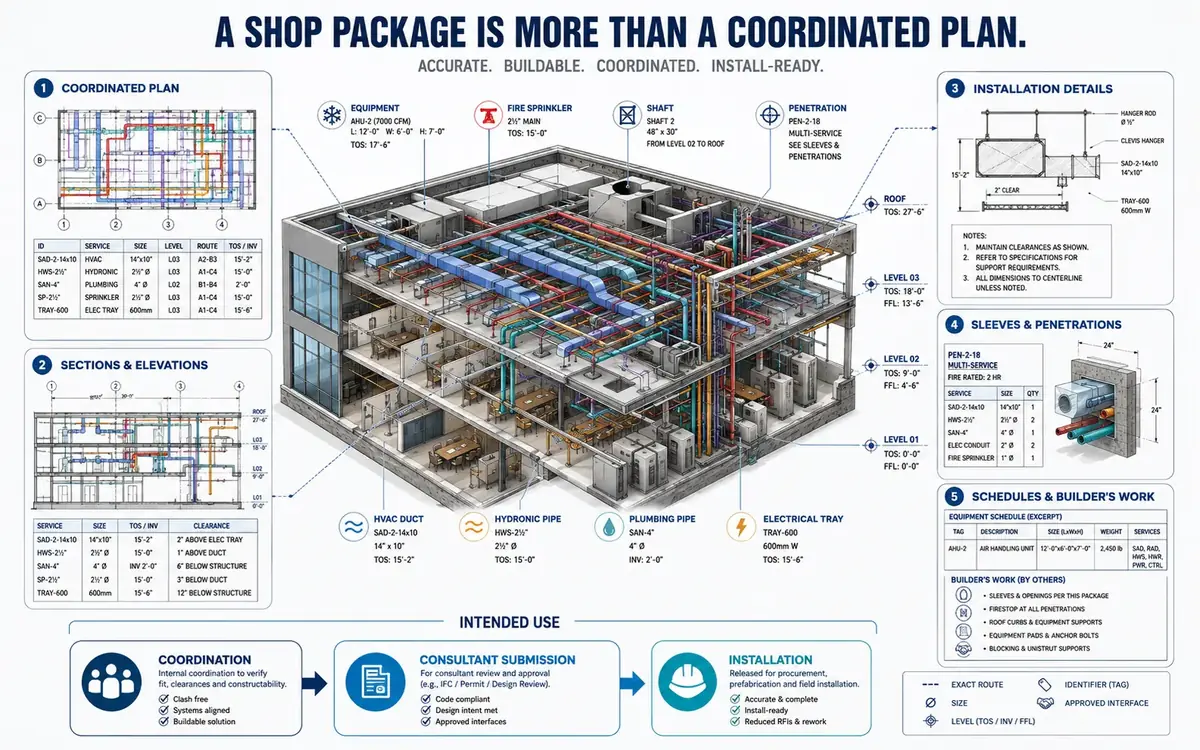

Coordinated MEP shop drawings may need to communicate route, size, elevation, system, equipment, access, interfaces and approved installation details. One plan rarely explains every congested area, vertical transition or penetration.
Our scope can include:
The scope defines whether the output supports coordination, consultant submission, fabrication or site installation. These uses require different information and acceptance criteria.
Shop-drawing production may use contract drawings, specifications, BIM models, equipment submittals, approved calculations, requests for information and coordination meeting outcomes. Their issue dates and authority must be clear.
We normally establish:
Where sources conflict, we log the affected location, drawing and system. The contractor or consultant determines which instruction governs.
HVAC shop drawings can show approved ductwork, hydronic piping, mechanical equipment, terminals, accessories and plant-room arrangements. Sections and elevations clarify congested routes or changes in level.
Airflow, thermal performance, sizes, equipment capacity, acoustic requirements, controls and fire-related criteria remain subject to mechanical engineering approval.
Plumbing shop drawings may cover domestic-water, sanitary, vent, stormwater and equipment-connection information. Plans, risers and sections should remain consistent in system identity, pipe size and level.
Demand, pressure, gradients, venting, equipment selection and health-code compliance remain with the authorised plumbing or mechanical engineer.
Electrical shop drawings can include approved equipment positions, containment routes, enlarged room views, risers and installation details. Circuit, panel and feeder references are coordinated with supplied schedules and diagrams.
Loads, protection, conductor sizing, tray fill, equipment ratings, clearances and electrical compliance are not determined through drafting.
Fire protection shop drawings may show approved sprinkler, hydrant, suppression, alarm or pump-room information. Their life-safety basis must come from qualified designers and accepted calculations.
CCSI does not determine hazard classification, hydraulic performance, coverage, alarm logic, equipment selection or statutory compliance.
MEP coordination drawings help project teams resolve spatial relationships between disciplines. They may use colour-coded systems, sections, clash viewpoints and simplified notes. Their purpose is decision-making.
Installation drawings communicate accepted details to site teams. They may need dimensions, elevations, equipment references, connection details, installation notes and cross-references. A coordination view does not automatically contain this information.
We record the intended use of every deliverable so incomplete coordination graphics are not presented as installation-ready sheets.
Sleeve and penetration drawings can show coordinated openings through walls, floors and structural elements using approved service locations and opening requirements. Coordinates, dimensions, levels and identifiers must agree with the accepted structural and MEP references.
Structural adequacy, reinforcement, fire stopping, waterproofing, seismic requirements and final opening approval remain with responsible engineers and contractors.
Builder's work drawings communicate approved interfaces such as openings, plinths, housekeeping pads, trenches, access panels and equipment bases. The exact scope depends on contractor and project standards.
We coordinate identifiers and references, but civil or structural design, loads and construction release remain outside standard drafting responsibility.
Fabrication-ready MEP drawings require far more than coordinated geometry. Approved products, connection methods, jointing, tolerances, support arrangements, spool logic, manufacturing rules and trade sign-off may all be necessary.
CCSI can prepare fabrication-level documentation when those inputs and responsibilities are defined. We do not label drawings fabrication-ready merely because they contain detailed 3D geometry.
This boundary protects the contractor and avoids false confidence in information that has not completed technical review.
Revit-generated shop drawings can include plans, sections, elevations, details, schedules and coordinated views derived from controlled MEP models. Model geometry and data must be complete enough for the intended sheets.
View templates, tags, annotations and sheet standards are applied consistently. Schedule and drawing identifiers are checked against approved project data. When a manual annotation overrides model information, the reason should remain traceable.
Native models may accompany PDFs, DWGs or other requested outputs. Export settings and coordinates are verified before submission.

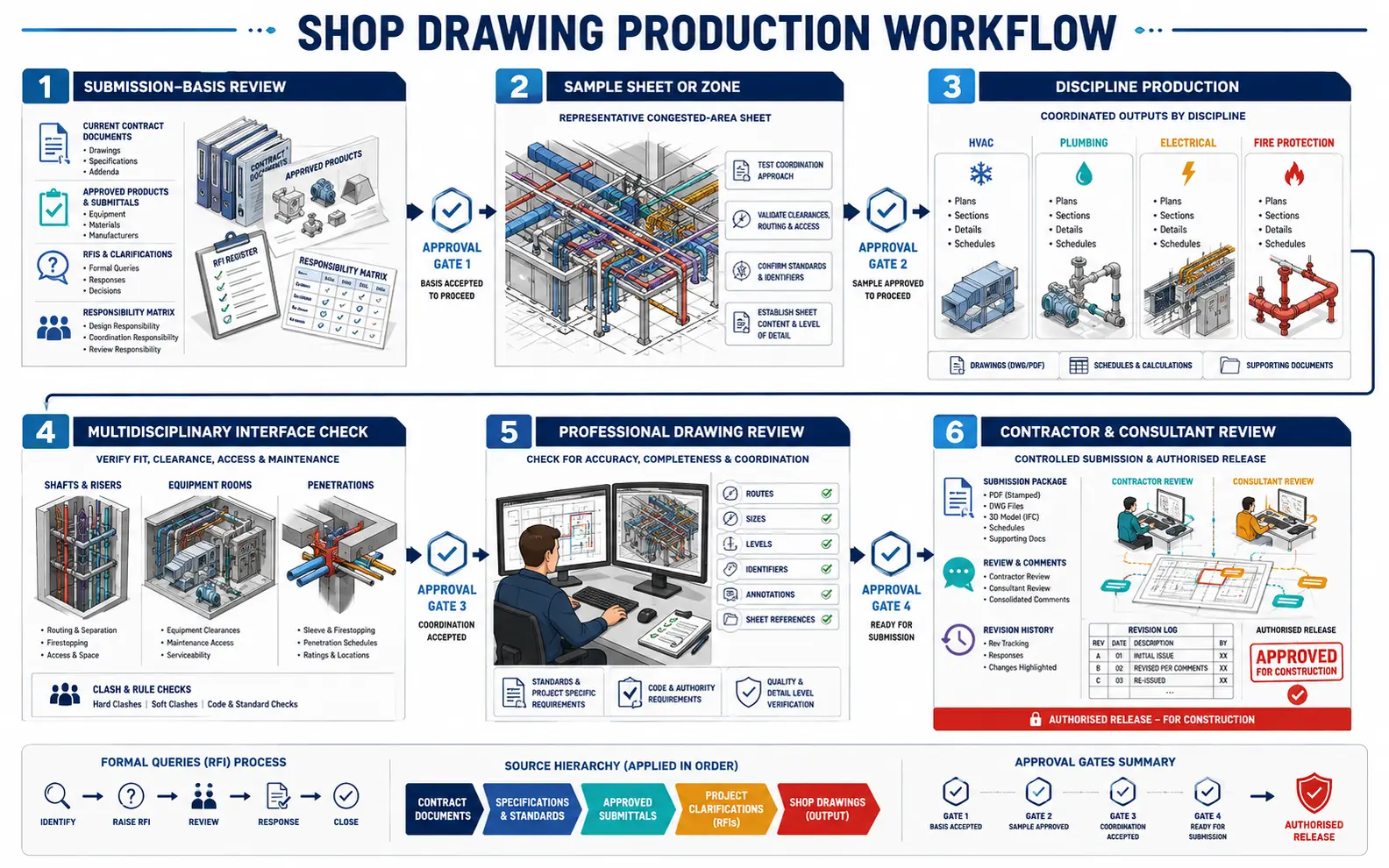

We examine current contract information, approved products, coordination decisions, drawing list and responsibility boundaries. Missing technical inputs become queries.
A representative drawing or congested area is developed first. The client confirms presentation, dimensioning, annotation depth and required detail.
Approved trade information is prepared in AutoCAD or Revit. Plans, sections, details and schedules follow the project register and submission sequence.
Shared zones, equipment rooms, shafts and penetrations are compared across accepted references. Unresolved interfaces are returned to responsible project parties.
The checker assesses source-to-output agreement, routes, sizes, levels, identifiers, annotations, details, schedules, sheet references and file completeness. AI may support change comparison, but human judgement controls acceptance.
Files are submitted through the agreed process. Comments, RFIs and approved changes are logged and incorporated. The authorised contractor or consultant releases subsequent use.
Depending on scope, our review may cover:
These checks assess documentation consistency. They do not replace engineering, fabrication, constructability, safety or statutory review.
This separation defines our MEP shop drawing solution and keeps approval responsibility visible.
A fixed scope can cover one discipline, building zone, stage or submission package based on an agreed drawing list.
Several trades can be developed around a shared zone register and approved coordination process, with discipline-specific reviewers retained by the client.
Active projects may require repeated consultant comments, RFIs and coordination changes to be incorporated under controlled revisions.
Offshore MEP shop drawing services can support contractors managing several sites or repeated building types. Shared standards and a coordinator improve continuity while project authority remains local.
Submission workloads often peak immediately before construction activities. External capacity can keep drawing development moving while contractor engineers focus on coordination decisions, procurement and site planning.
Our MEP shop drawing outsourcing services may cover a defined package or outsourced MEP shop drawing support across recurring submissions. CCSI acts as an expert MEP shop drawing service provider within the client’s technical and approval structure.
Professional MEP shop drawing services are most effective when approved inputs, intended use, responsibility boundaries and acceptance requirements are explicit.
Instead of relying on crowded plans, the team developed clear sections around the difficult interfaces. Our engineers could approve the coordination decisions efficiently.
Christopher H., Senior MEP Manager, United States
Each penetration has one controlled identifier across the model, plan and schedule. Unresolved structural questions remained visible for our engineers.
Leonie B., Digital Construction Lead, Germany
CCSI follows our property standards and consultant comments carefully. They add useful drawing capacity without making project decisions on our behalf.
Noor A., MEP Delivery Manager, United Arab Emirates
Yes. We can use accepted contract drawings, specifications, equipment data, coordination models and authorised instructions. Missing or conflicting information is returned for clarification.
No. Fabrication use requires complete product, connection, tolerance, support and trade information plus approval from responsible contractors or fabricators. The intended use must be defined explicitly.
Yes. We can document approved opening and interface requirements. Structural adequacy, reinforcement, fire stopping, waterproofing and construction release remain with authorised project parties.
Yes. Shop-drawing production can follow procurement or construction priorities, provided each package names the current design references, coordination status and approving consultant.
Share the current contract documents, accepted products, coordination references and required drawing list. We will assess readiness and recommend a structured production workflow.
