Shop drawings sit between design intent and the information used by fabricators, suppliers and site teams. If references, dimensions or revisions are unclear at this stage, errors can move directly into procurement or construction. Our structural shop drawing services create coordinated submittal packages from approved engineering information and client standards.
CAD Conversion Services India prepares steel, concrete, reinforcement and precast documentation in AutoCAD and Revit. Each assignment begins by defining which source controls the work, how technical questions will be answered and who can approve changes. AI-assisted comparisons may help identify inconsistencies, but trained detailers and checkers remain responsible for every issued sheet.
Confirm these essentials before production begins.
Engineer-issued design information, calculations, mark-ups and project standards
Structural models, drawings, schedules and material-specific detailing
AutoCAD, Revit and agreed structural-production tools
Focused production support for Structural Shop Drawing Services, with scope, source authority and review responsibility agreed before work begins.

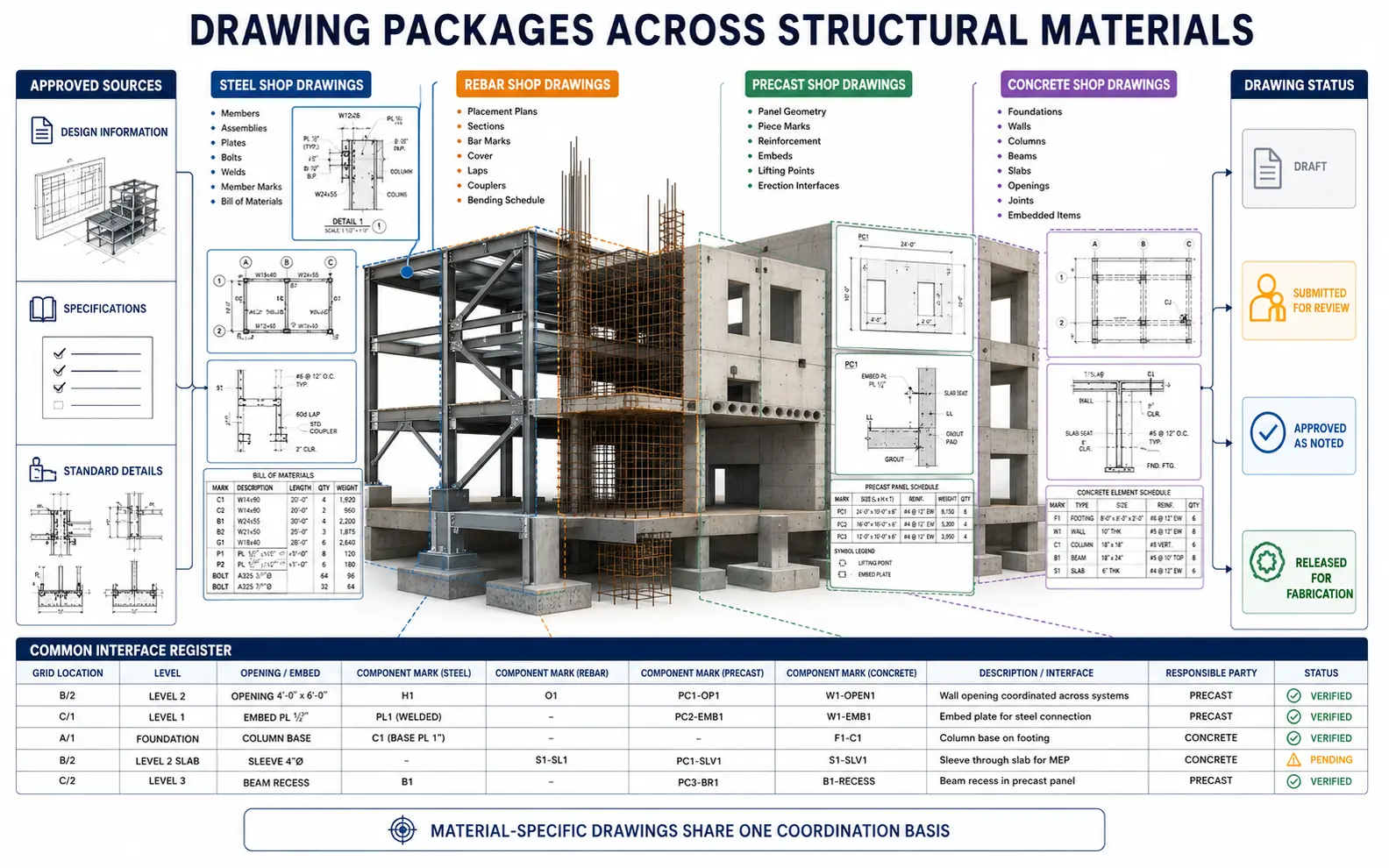

Design drawings establish the structural concept and required performance. Shop and construction drawings organise the approved information around fabrication, placement, assembly or installation. They may need additional dimensions, member marks, part references, schedules, sections and interfaces that were unnecessary at design-document scale.
Before production, we confirm:
This setup creates a drawing package based on the project’s review and construction process rather than a generic template.
Steel shop drawings may cover members, assemblies, plates, approved connections, bolts, welds and related fabrication information. Work is based on current structural drawings and engineer-approved connection data. Member design or connection engineering is not inferred from the detailing scope.
Rebar shop drawings translate approved reinforcement requirements into placement plans, sections, bar marks and schedules. Concrete geometry, cover, laps, couplers, openings and congestion points are reviewed against issued information, with unresolved conditions returned to the responsible engineer.
Precast shop drawings can show component geometry, identification, reinforcement, embeds, lifting points and approved interfaces. Supplier practices, mould constraints and erection requirements are incorporated where they are provided and authorised.
Concrete shop drawings may document foundations, walls, columns, beams, slabs, openings, joints and embedded items. Depending on the brief, they can support formwork coordination, reinforcement documentation or staged concrete construction.
Coordinated structural drawings help teams see where separately prepared information meets. A beam opening may affect services, a façade bracket may influence reinforcement, or an equipment base may require both structural and vendor references.
Coordination can include:
Potential conflicts are recorded through marked views or query logs. The detailer identifies the condition; the authorised designer, engineer, fabricator or contractor approves the technical response.
Fabrication shop drawings should give the workshop enough approved information to produce the required parts or assemblies without searching across unrelated files. The content varies with the material and fabricator, but may include dimensions, marks, material descriptions, hole or embed information, weld references and bills of material.
Erection drawings organise components around grids, levels, orientation and installation references. They can show member or panel marks, field connections and approved sequencing identifiers. Actual lifting plans, temporary stability, erection engineering and site safety remain with the responsible contractor and qualified professionals unless separately included.
An expert checker compares fabrication information with the relevant arrangements and schedules. Drawings that look complete are not accepted if their references cannot be traced to the approved sources.
BIM-based shop drawings can reduce repeated drafting and help views, schedules and component marks stay connected. The model must still have a defined purpose, information status and responsibility structure.
We can develop or update models for:
Model-generated dimensions and schedules are checked before issue. A modeler also reviews visibility, linked files, worksets, filters and view templates so missing information is not hidden by the presentation setup.
The phrase structural approval drawings can refer to documents submitted for engineer, consultant, contractor or client review. It does not automatically mean that the drawings have been approved or certified.
We apply agreed issue labels such as draft, submitted for review, approved as noted or released for fabrication only when the authorised party confirms that status. Review comments are logged and incorporated against the correct revision.
Where local law requires an architect’s or engineer’s signature, seal or statutory certification, that responsibility remains with the appropriately licensed professional. Our production team does not change a drawing’s legal status by adding an internal check mark.
Our construction detailing services can support fixed packages such as a stair core, warehouse frame, precast façade, foundation zone or reinforcement release. Breaking a large project into controlled areas helps align production with procurement and site priorities.
Structural material schedules may consolidate member marks, concrete elements, reinforcement, precast pieces or other approved information. Schedule fields and quantities are cross-checked with drawings and models, but they are not treated as procurement orders unless the client specifically defines that purpose and review process.
Changes received after submission are assessed for downstream impact. A revised opening, for example, may affect concrete plans, rebar sheets, embeds, schedules and model views—not only the drawing where the redline appears.
We identify materials, drawing packages, model dependencies, milestones and approval contacts. The register records the planned status of each deliverable.
Structural, architectural and relevant specialist information is compared. Missing dimensions and conflicting revisions are raised before they spread across sheets.
A representative assembly, element or building area can be prepared first to confirm detail, notation and presentation.
Detailers create the required plans, sections, elevations, schedules and model views while retaining references to the authorised sources.
An expert reviewer checks geometry, dimensions, marks, notes, schedules, model consistency and deliverable completeness. Automated revision comparison may assist with large packages.
Files are issued through the agreed channel. Approved comments are logged, applied and rechecked before the next status is assigned.
Depending on material and purpose, we may review:
These checks confirm the production package against supplied information. They do not constitute independent structural analysis or approval of a design outside the agreed scope.
The drawing team can support a single construction package, a backlog or a continuing programme of submissions. Each workstream follows the client’s templates, data environment and review responsibilities.
External drawing production can provide temporary or recurring capacity without transferring final technical control. The client retains its established engineering, review and approval responsibilities.
We keep drawing status, assumptions and queries visible and issue traceable packages rather than unrecorded revisions.
The external-production team can work across international time zones while the client retains its established communication and approval routes.
