Mechanical CAD Conversion Services for Recovering and Reusing Engineering Information
Old engineering information does not become reliable merely because it has been moved into a newer file format. A scanned blueprint may contain manual amendments. A supplier model may arrive in a neutral format without useful feature history. A collection of AutoCAD drawings may refer to revisions or parts that are no longer clearly identified.
CAD Conversion Services India provides mechanical CAD conversion services for manufacturers, asset owners, product businesses and engineering teams that need usable drawings or models from legacy sources. We convert PDFs, scans, paper records, raster images, 2D files and agreed 3D formats through controlled AutoCAD and SolidWorks workflows.
The conversion method is selected according to the required output—not simply the source extension. Our offshore team preserves traceability to the supplied information, identifies unreadable or conflicting content and submits technical questions for client review. Engineering interpretation and final approval remain with the authorised client representatives.
✓ AI Powered✓ Free Pilot Batch✓ NDA Protected✓ 99.5% Quality
Mechanical drawing conversion review
1500+Completed Projects
82%Returning Clients
10+Years Experience
45+Countries Served
35+Professionals Team
Project Fit at a Glance
Confirm these essentials before production begins.
Inputs
Sketches, legacy drawings, samples, measurements and approved engineering instructions
Outputs & deliverables
Parts, assemblies, production drawings, BOMs and agreed exchange files
Software
SolidWorks, AutoCAD and agreed mechanical CAD formats
Service intent
Focused production support for Mechanical CAD Conversion Services, with scope, source authority and review responsibility agreed before work begins.
IndustriesArchitectureConstructionManufacturingEngineeringReal EstateCountries ServedUSACanadaUKAustraliaUAEEuropean Nations45+ Countries
IndustriesArchitectureConstructionManufacturingEngineeringReal EstateCountries ServedUSACanadaUKAustraliaUAEEuropean Nations45+ Countries
What Mechanical CAD Conversion Can—and Cannot—Recover
Some conversions involve redrawing visible geometry into an editable format. Others require rebuilding a parametric model from dimensioned 2D views. A neutral 3D file may need to be imported, checked and organised for a specific downstream task. The expected level of intelligence in the output must therefore be defined before production.
Our services can include:
Mechanical drawing conversion from paper, PDF, image and older CAD sources
PDF to mechanical CAD for editable drawing recreation
2D to 3D mechanical conversion from sufficiently defined engineering drawings
Legacy mechanical drawing digitization for searchable, editable archives
AutoCAD to SolidWorks conversion for approved components and assemblies
Raster mechanical drawing conversion with manual geometry verification
STEP IGES file conversion for agreed exchange and downstream-use requirements
Mechanical blueprint redrawing using client templates and conventions
Editable mechanical DWG files with organised layers and drawing elements
Parametric model conversion where feature recreation is explicitly required
Bulk engineering drawing conversion with indexing and batch controls
Conversion cannot reliably recover information that is absent from the source. A blurred dimension, missing rear view or undefined tolerance must be clarified or visibly recorded as unresolved. We do not hide source limitations by creating plausible but unauthorised engineering content.

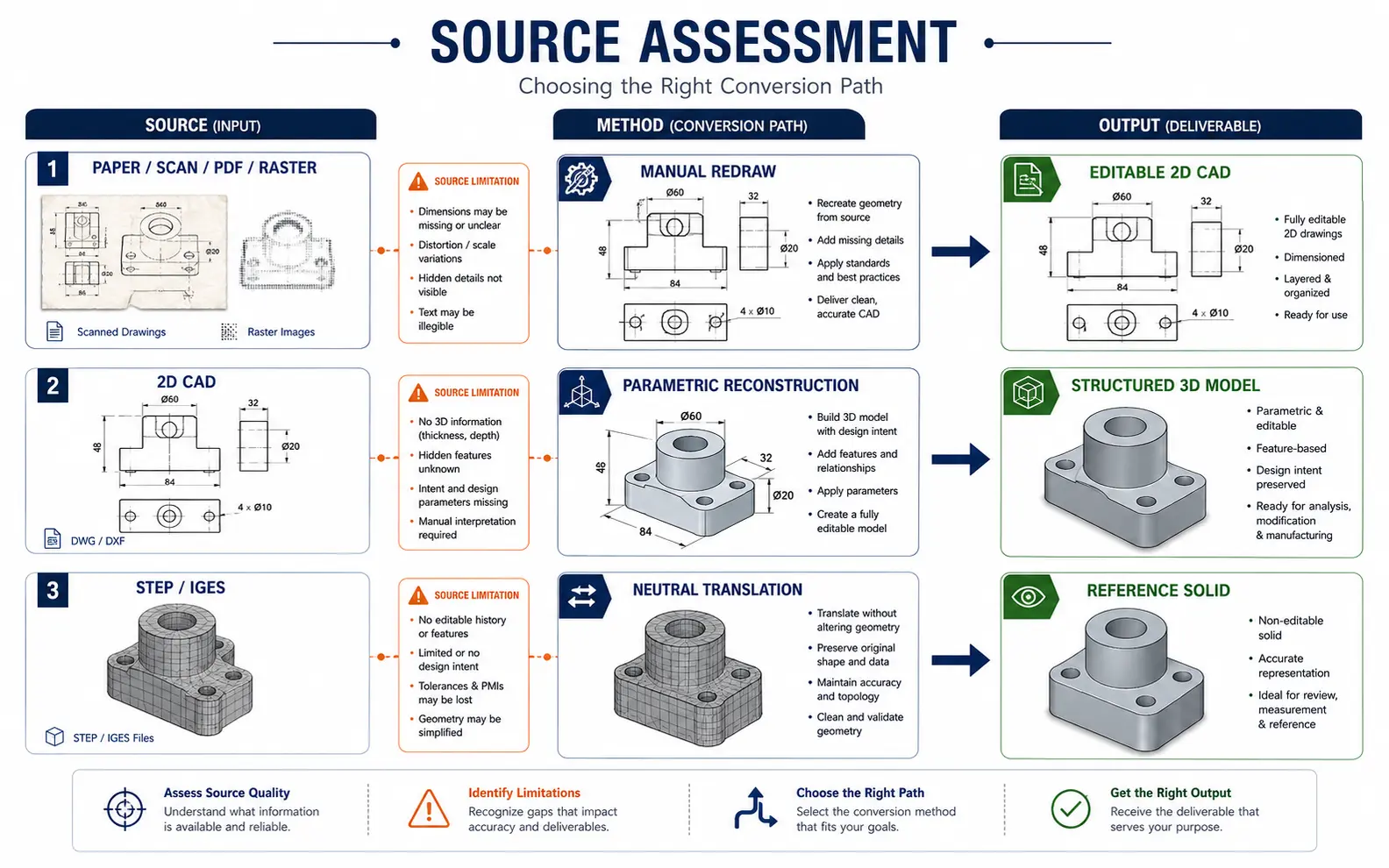

Choosing the Right Conversion Path
Source quality and the intended deliverable determine whether information is redrawn, reconstructed as a parametric model or translated as reference geometry.
PDF, Scan and Raster to Editable CAD
For PDF to mechanical CAD and raster mechanical drawing conversion, we assess legibility, scale, line quality, dimension clarity and any handwritten revisions. Geometry can be manually recreated in AutoCAD, while text, layers, dimensions and title-block information are rebuilt according to the approved standard.
Automatic vectorisation may assist with initial extraction on suitable files, but raw vectors often contain fragmented lines, inaccurate arcs and unstructured text. A professional conversion requires human redrawing or correction and comparison against the visible source.
Paper Blueprint and Archive Recovery
Mechanical blueprint redrawing may include sheet cleaning, geometry reconstruction, annotation entry, title-block replacement and revision recording. Before bulk work begins, the client should identify which version is authoritative and how superseded or duplicate sheets must be handled.
Legacy mechanical drawing digitization can also include a file register so each output remains connected to the original record. This is particularly useful for maintenance archives, acquired equipment and long-lived product families.
AutoCAD Drawings to SolidWorks Models
AutoCAD to SolidWorks conversion is not a simple save-as operation when the expected result is an editable parametric model. We review whether the 2D views and dimensions fully define the part, then plan sketches, features and references around the client’s expected use.
For assemblies, part boundaries, identifiers and relationships must be confirmed. An expert modeler rebuilds authorised geometry, but does not independently determine missing design intent.
When a conversion package spans several products, an expert coordinator checks naming, drawing-to-model links and delivery registers across batches. This professional oversight helps prevent technically correct individual files from becoming disconnected from the wider archive structure.
Neutral 3D File Translation
STEP IGES file conversion may be required for supplier exchange, viewing, drawing creation or use in another CAD environment. Imported geometry is checked for obvious translation issues within the agreed scope. If editable feature history is needed, a separate parametric model conversion process may be required rather than direct format translation.

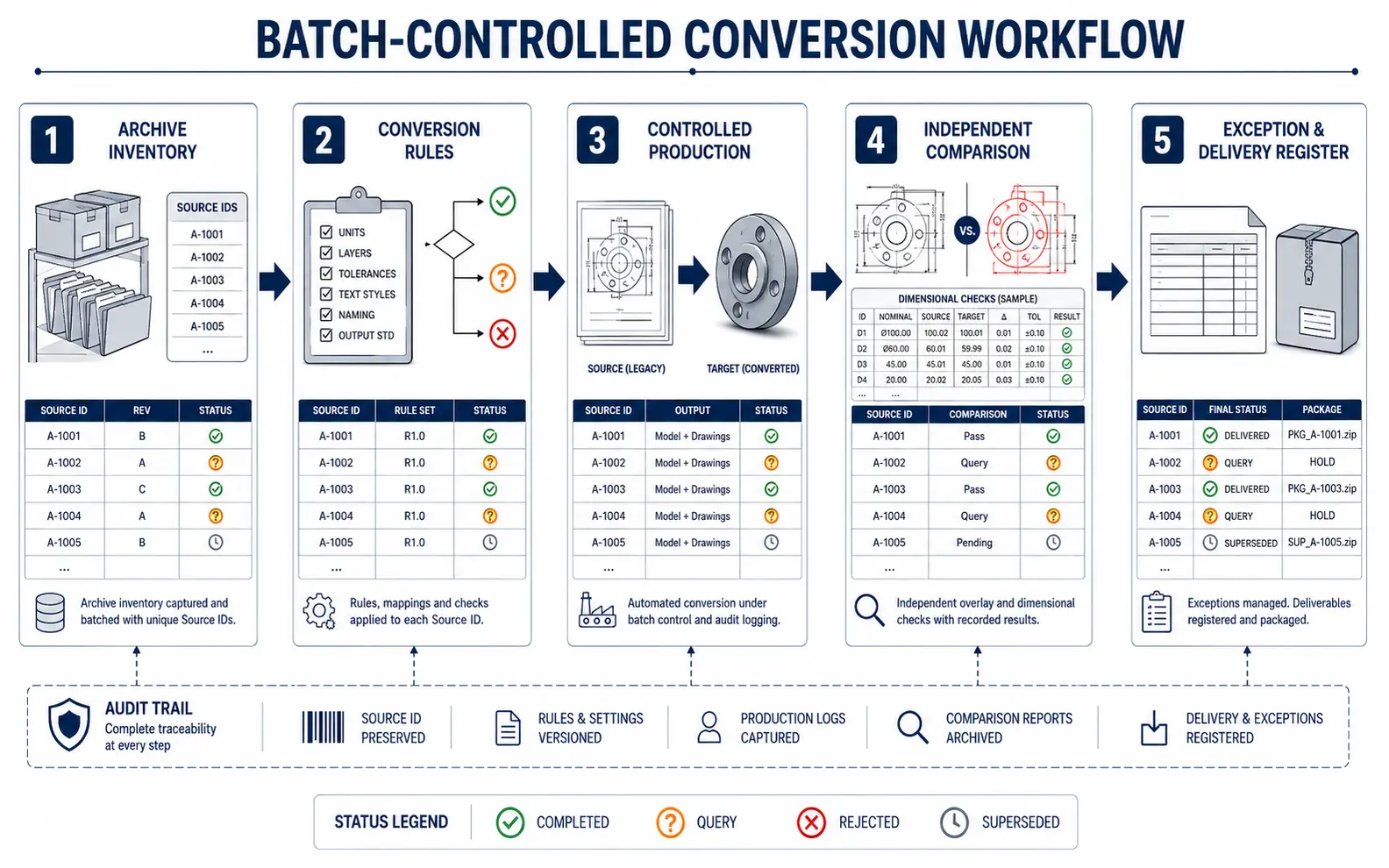

A Batch-Controlled Conversion Workflow
Preserved source identifiers and recorded statuses create an auditable path from archive inventory through controlled conversion, independent comparison and registered delivery.
Large archives need more than individual file handling. Without an index, naming rules and exception process, converted files can become disconnected from their sources or duplicated under new names.
Archive Inventory
We register the supplied files, identify obvious duplicates and capture available drawing numbers, titles, revisions and formats. Missing or unreadable identifiers are flagged.
Conversion Rules
The client approves output format, software version, templates, layers, naming conventions, revision treatment and the method for recording uncertainty. A sample batch is recommended where source quality varies.
Controlled Production for Mechanical CAD Conversion Services
Files are converted in defined batches. Each output retains a link to its source record, and queries are tracked separately from completed work.
Independent Comparison for Mechanical CAD Conversion Services
A checker reviews geometry, dimensions, text, symbols, sheet information and file organisation against the source. For 3D conversions, key dimensions and expected model properties are also examined where the source permits.
Exception and Delivery Register
Completed, queried, rejected and superseded items are recorded. Final files are packaged using the approved folder and transmittal structure.
This approach makes mechanical CAD conversion outsourcing services more dependable for volume work and mixed-condition archives.
AI-Assisted Classification with Human Verification
AI and OCR can help read title blocks, suggest drawing classifications, compare file names, locate repeated annotations and prepare metadata across large archives. These tools are useful for prioritisation and indexing when their output is treated as provisional.
Every extracted value or classification that affects the deliverable is checked by a person. AI is not allowed to decide which conflicting revision is correct, repair an unreadable dimension by guesswork or approve translated geometry. This distinction supports professional mechanical CAD conversion services while keeping responsibility with accountable reviewers.
Conversion Support for Different Workload Patterns
A Fixed Legacy Archive
A known drawing collection can be grouped by equipment, product family, file condition or priority. A pilot batch helps establish effort and exception rates before the remaining archive is scheduled.
A Migration or System Change
Companies may outsource mechanical CAD conversion when moving from paper or mixed formats into a new document-control or CAD environment. Output rules should reflect how files will be searched, edited and governed after migration.
Recurring Incoming Conversions
Outsourced mechanical CAD conversion support can process continuing supplier files, customer drawings or maintenance records. A stable intake register and delivery cadence prevent individual conversions from bypassing revision control.
As an expert mechanical CAD conversion service provider, we distinguish direct translation, manual redrawing and feature-based reconstruction during scope review. Those methods require different inputs, effort and validation.
Offshore Conversion Delivery from India
Our team provides offshore mechanical CAD conversion services for clients in the United States, Canada, European nations, the United Arab Emirates, Australia, South Africa, Singapore, Japan, Taiwan and India. Work can be scheduled around agreed batches, review windows and client time zones.
Some clients outsource a small group of urgent drawings, while others outsource thousands of archive records through phased releases. In both cases, security expectations, file-transfer procedures, authorised reviewers and treatment of source documents are defined before production.
A reliable mechanical CAD conversion solution should leave the client with files that are usable for the stated purpose and traceable to the supplied evidence. When assessing a mechanical CAD conversion solutions company India can provide, it is important to compare exception handling, human checking and document control alongside throughput.
Mechanical CAD Conversion Services Project Case Studies
Project 1: Recovering Maintenance Drawings from a Mixed Plant Archive
Project Name
Chemical Plant Mechanical Drawing Digitization
Volume
612 scans covering pumps, vessels, pipe supports and maintenance assemblies
Problem
A Canadian chemical producer held decades of mechanical records in mixed scan quality. Duplicate sheets, handwritten changes and inconsistent equipment tags made a direct bulk conversion unsafe.
Solution
We first created an inventory by equipment area and separated duplicates, superseded records and unreadable sheets. A pilot established AutoCAD layering and exception rules. Production then proceeded in controlled batches, with ambiguous dimensions and revision conflicts returned in a consolidated query register.
Outcome
The plant received an indexed set of editable drawings for maintenance engineering review, together with a clear record of files that could not be responsibly converted without further information.
Title
Asset Information Manager
Industry
Chemical Manufacturing
Country
Canada
Project 2: Rebuilding 2D Components as Parametric SolidWorks Parts
Project Name
Agricultural Gearbox Component Model Migration
Volume
93 part drawings and 14 reference assemblies
Problem
An Indian equipment manufacturer needed editable models for a mature gearbox range. Its dimensioned AutoCAD drawings were current, but earlier imported solids lacked feature history and consistent properties.
Solution
The client classified which components required full parametric reconstruction and which could remain reference solids. We rebuilt the selected parts in SolidWorks, applied approved custom properties and checked key dimensions against the released 2D drawings. Assembly placement was used as an additional reference, not as engineering approval.
Outcome
The manufacturer obtained a controlled model library for future engineering changes without paying for unnecessary reconstruction of every reference component.
Title
CAD Systems Coordinator
Industry
Agricultural Machinery
Country
India
Project 3: Recurring Supplier-File Conversion for Marine Equipment
Project Name
Weekly Supplier CAD Normalisation Queue
Volume
25–45 STEP, IGES, PDF and DWG files per week
Problem
A Norwegian marine-equipment integrator received components from many suppliers. File names, coordinate systems and drawing conventions varied, slowing internal review and equipment-layout preparation.
Solution
We established a recurring intake process that classified each file by intended use. Neutral models were translated and checked, drawings were normalised only to the approved level and exceptions were reported through a weekly register. Supplier originals were preserved separately from processed outputs.
Outcome
The engineering team received consistently organised reference files while maintaining clear provenance to every supplier-issued source.
The archive contained far more exceptions than we expected. The team’s inventory and pilot made the scale visible before production, and the final register is as useful as the CAD files.
Sophie L., Asset Information Manager, Canada
“
They helped us separate parts that genuinely needed feature reconstruction from files that only needed controlled translation. That kept the project focused on engineering value.
Arjun N., CAD Systems Coordinator, India
“
Supplier originals and processed files remain clearly separated, which is essential for our document control. The weekly exception list also gives our engineers a quick review path.
Ingrid S., Technical Data Coordinator, Norway
