Reinforcement information must work both mathematically and physically. Bar sizes and spacing may be defined by the engineer, but the construction package also needs buildable placement, consistent marks, clear laps, workable congestion and schedules that correspond with the drawings.
Our rebar detailing and bar bending schedule services convert approved structural and reinforcement design information into placement drawings, schedules, quantities and model-based documentation. CAD Conversion Services India works with contractors, engineering consultancies, rebar fabricators and concrete specialists using AutoCAD, Revit and client-approved standards.
Automated comparisons and AI-assisted data checks may help locate missing marks or schedule inconsistencies. Experienced detailers remain responsible for interpreting the issued design, raising uncertainties and checking final deliverables.
Confirm these essentials before production begins.
Engineer-issued design information, calculations, mark-ups and project standards
Structural models, drawings, schedules and material-specific detailing
AutoCAD, Revit and agreed structural-production tools
Focused production support for Rebar Detailing and Bar Bending Schedules, with scope, source authority and review responsibility agreed before work begins.

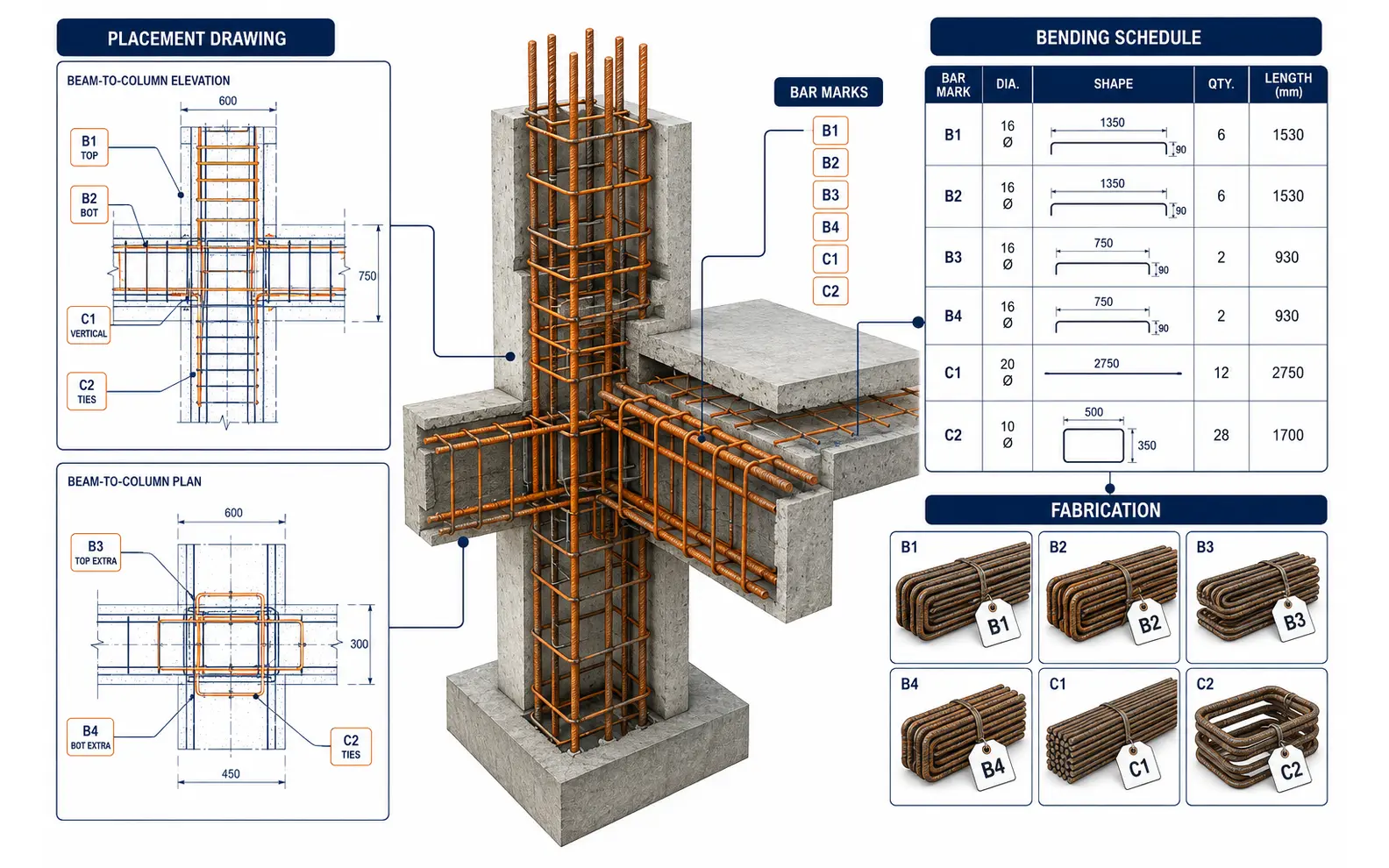

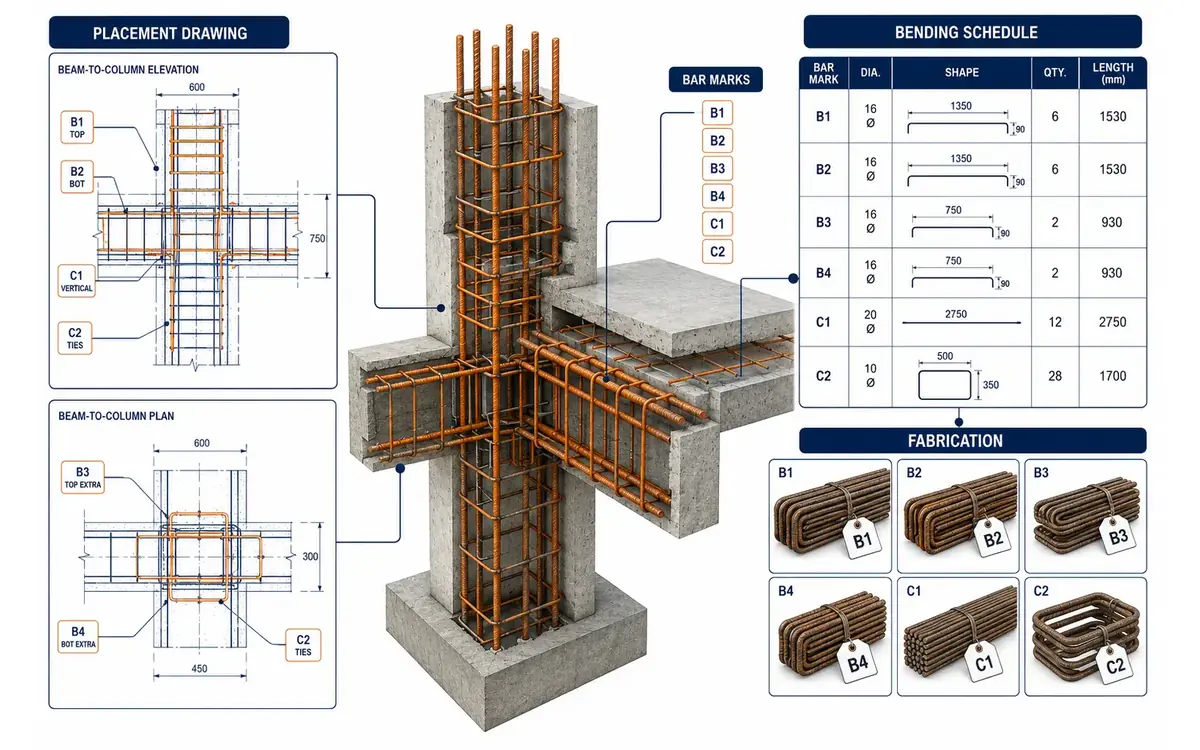

A placement drawing, bar mark and bending schedule describe different parts of the same instruction. If one changes without the others, procurement, cutting or site placement can be affected.
Before detailing begins, we establish:

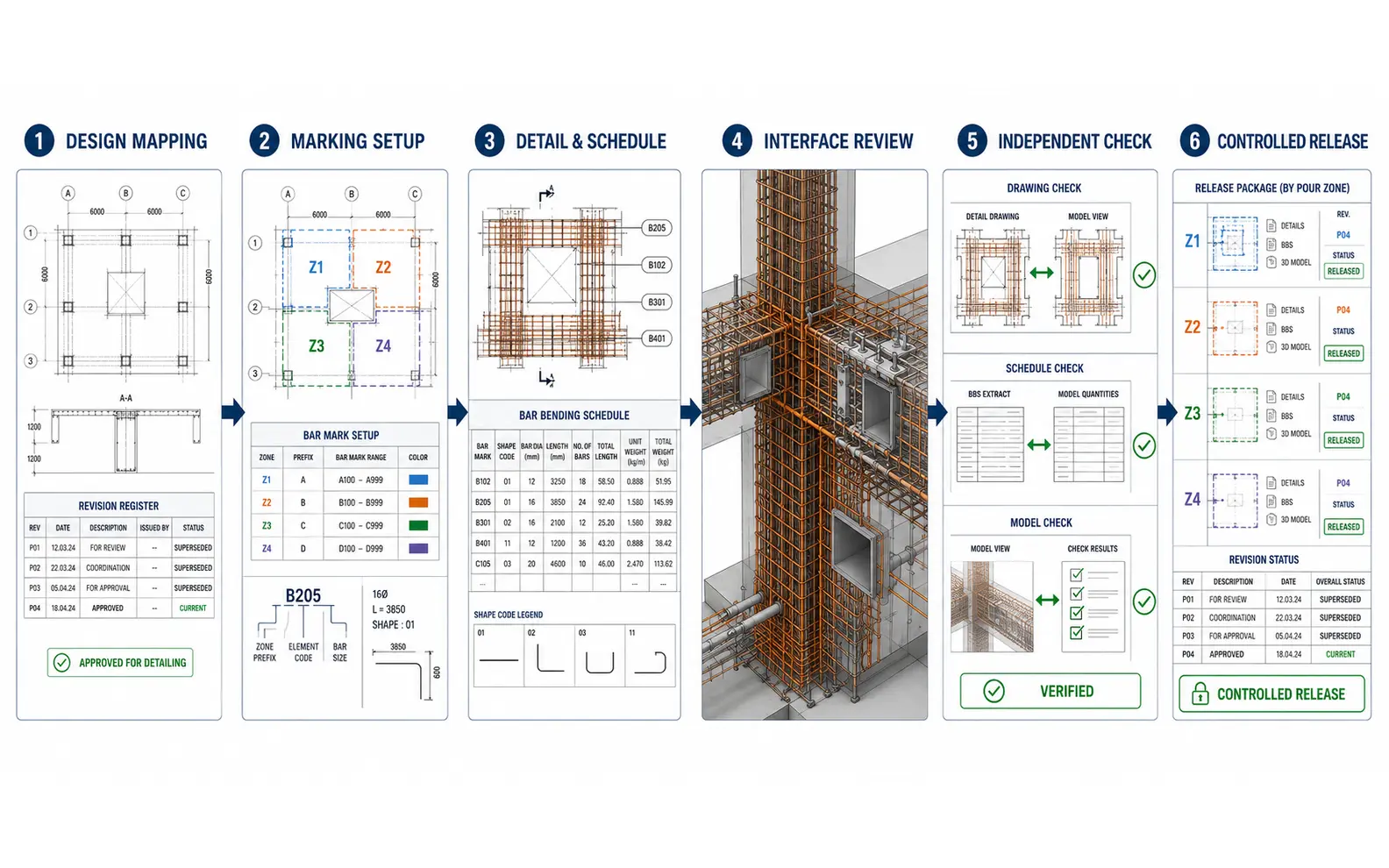

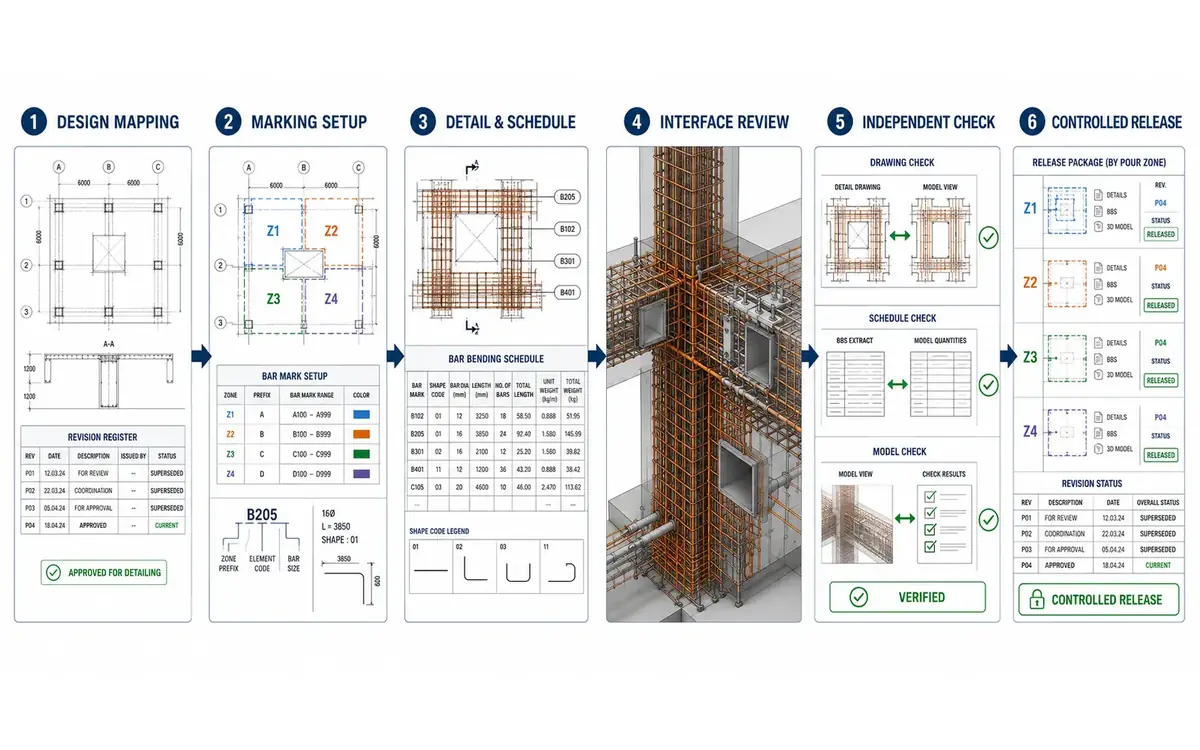

The resulting rebar detailing and bar bending schedule solution is organised around traceability from design reference to drawing, bar mark and scheduled quantity.
Rebar placement drawings show how approved reinforcement is arranged within concrete elements. Plans, elevations and sections can identify bar direction, layer, spacing, marks, laps, starters, couplers, additional bars and relevant construction references.
The package may cover:
An expert detailer checks whether the approved arrangement can be represented clearly within the available geometry. Congestion or conflicting design information is recorded for engineering resolution rather than changed informally.
Footing reinforcement details can show bottom and top mats, column starters, dowels, punching reinforcement, laps, cover and interfaces with ground beams. Foundation dimensions and reinforcement are taken from approved engineering sources.
Slab reinforcement detailing may include primary bars, distribution steel, additional strips, opening trimming, edge conditions, column zones and changes in slab level or thickness. Bar layers and directions are made explicit so plan information is not misread on site.
Beam and column rebar details can cover longitudinal bars, links or ties, curtailment, laps, anchorage, couplers, confinement zones and beam-column intersections. Dense joints are reviewed carefully because individually correct element details may conflict when combined.
Reinforcement detailing documents the approved design. Bar adequacy, structural capacity and changes to the engineer’s reinforcement requirements remain outside a production-only scope.
BBS preparation services organise reinforcement into bar marks, member or location references, diameters, shapes, dimensions, quantities, lengths and calculated weights according to the client’s required format.
Bar shape schedules can follow applicable national, international or fabricator-specific conventions when these are confirmed at project setup. Shape codes are not applied blindly; the scheduled dimensions must reflect the approved geometry, bend rules and intended fabrication method.
Our checking process compares:
An expert checker reviews exceptions identified by automated schedule comparison. A spreadsheet total alone is not accepted as evidence that bar geometry or placement is correct.
Concrete reinforcement drawings must account for more than bars. Openings, sleeves, cast-in items, anchor groups, waterstops, profiles and construction joints may affect available placement space.
Coordination may examine:
Where reinforcement cannot be placed as documented, the condition is shown through a query view or marked section. The responsible engineer approves any design revision, while the contractor or reinforcing specialist confirms site method and sequencing.
A rebar quantity takeoff may be developed from the checked schedules and approved drawing scope. Quantities can be summarised by diameter, element, level, pour, release or other client-defined category.
The takeoff can assist planning and procurement, but its intended use must be agreed. Waste allowances, stock lengths, offcut reuse, coupler strategy and purchasing decisions remain with the client unless specifically included.
Revision control is particularly important for quantities. When reinforcement changes, affected marks and scheduled weights are updated against the issue register. Superseded totals are retained or archived according to the agreed document-control process rather than silently overwritten.
Revit rebar modeling can help teams review reinforcement in congested or geometrically complex areas. Bars may be assigned to hosts and organised by element, zone, pour or drawing package according to the project standard.
The model can support:
A professional modeler checks host relationships, bar sets, visibility, marks and schedule results. Model completeness is measured against the agreed scope, not by filling every concrete element with reinforcement regardless of project need.
Structural drawings, design sheets, general notes and revisions are registered. Unclear or inconsistent reinforcement requirements are logged.
Templates, element zones, bar marks, schedule format, shape convention and issue sequence are established. A pilot element may be submitted first.
Placement plans, sections, callouts, marks and schedules are prepared from the approved information. References remain linked through the bar register.
Complex joints, openings, embeds and overlapping bar zones are reviewed visually or through the model. Conditions needing design judgement are returned to the engineer.
An expert reviewer checks placement, marks, shapes, dimensions, quantities, schedules and drawing-to-model consistency. Automated tests support but do not replace human review.
Files are issued by pour, zone, level or client milestone. Approved comments are applied across every affected drawing, schedule and quantity summary.
Depending on scope, deliverables may include:
Drawing and schedule templates can follow the contractor’s, consultant’s or fabricator’s standards. Software versions, units, notation and approval status are confirmed before production.
Our offshore rebar detailing and bar bending schedule services can support a single concrete package, an urgent pour sequence or a continuing programme of drawing and schedule releases.
Contractors may outsource rebar detailing and bar bending schedule production when internal teams lack capacity for a defined deadline. Rebar detailing and bar bending schedule outsourcing services can also provide recurring help through outsourced rebar detailing and bar bending schedule support.
As an expert rebar detailing and bar bending schedule service provider, we keep bar marks, revisions and unresolved questions traceable. Our professional rebar detailing and bar bending schedule services remain based on engineer-approved reinforcement information.
The offshore team works within the client’s approval route and document-control system instead of creating a parallel record that the site cannot trust.
The pour-zone register kept continuity bars and couplers visible across separate releases. Our site team could plan each pour without losing the full raft picture.
Mariam A., Reinforcement Manager, United Arab Emirates
The segment-family approach made the differences between similar components very clear. Our production reviewers could verify schedules against the correct mould sequence.
Daichi S., Precast Production Engineer, Japan
Their recurring support adapts when our pour priorities change. Bar marks remain separate by project, and unresolved design questions go back to the correct consultant.
Brooke H., Concrete Construction Manager, Australia
Our standard service details reinforcement supplied or approved by the responsible structural engineer. Reinforcement design can only be included under a separately defined engineering scope with qualified review and clear responsibility for local approval.
Yes. We can use client-provided national, regional or fabricator-specific bar-shape conventions after confirming notation, dimensional rules, units, mark format and required schedule fields.
It may be possible when complete, approved placement information already exists. However, every scheduled bar still needs a traceable location and geometry reference so marks, quantities and dimensions can be checked.
Only if procurement use is included in the scope and the client has reviewed the relevant assumptions. Waste, stock lengths, offcuts, couplers, laps and purchasing allowances may not be represented by the theoretical scheduled weight alone.
Send approved reinforcement drawings, concrete geometry, scheduling standards, required releases and model or file-format expectations. We will review the information and propose a practical professional workflow.
Whether you need to outsource an urgent pour package or build recurring offshore capacity, the bar marks, drawings and schedules must remain part of one controlled record.
