Coordination Starts Before the Clash Test
Reliable results require models that occupy the same project space and represent a comparable point in the programme. Misaligned origins, missing levels, duplicated links or superseded files can generate reports that look comprehensive but provide little value.
Our scope can include:
MEP clash detection across mechanical, electrical and plumbing systems
Navisworks clash detection using project-defined test rules
Federated BIM coordination across accepted discipline models
Hard clash detection for physical intersections
Soft clash detection for clearance, access and tolerance zones
Clash report generation with controlled viewpoints and identifiers
Architectural structural MEP coordination by level, zone or system
Support for model coordination meetings and issue follow-up
Constructability review assistance based on client-defined criteria
Clash resolution services after authorised technical decisions
Coordinated Revit models updated through revision control
Milestone or recurring model-coordination support
The first task is to agree what the coordination exercise is intended to protect: spatial fit, access, installation sequence, maintainability, structural interfaces or a defined combination of these priorities.
Establishing a Defensible Coordination Baseline
Before testing begins, we normally confirm:

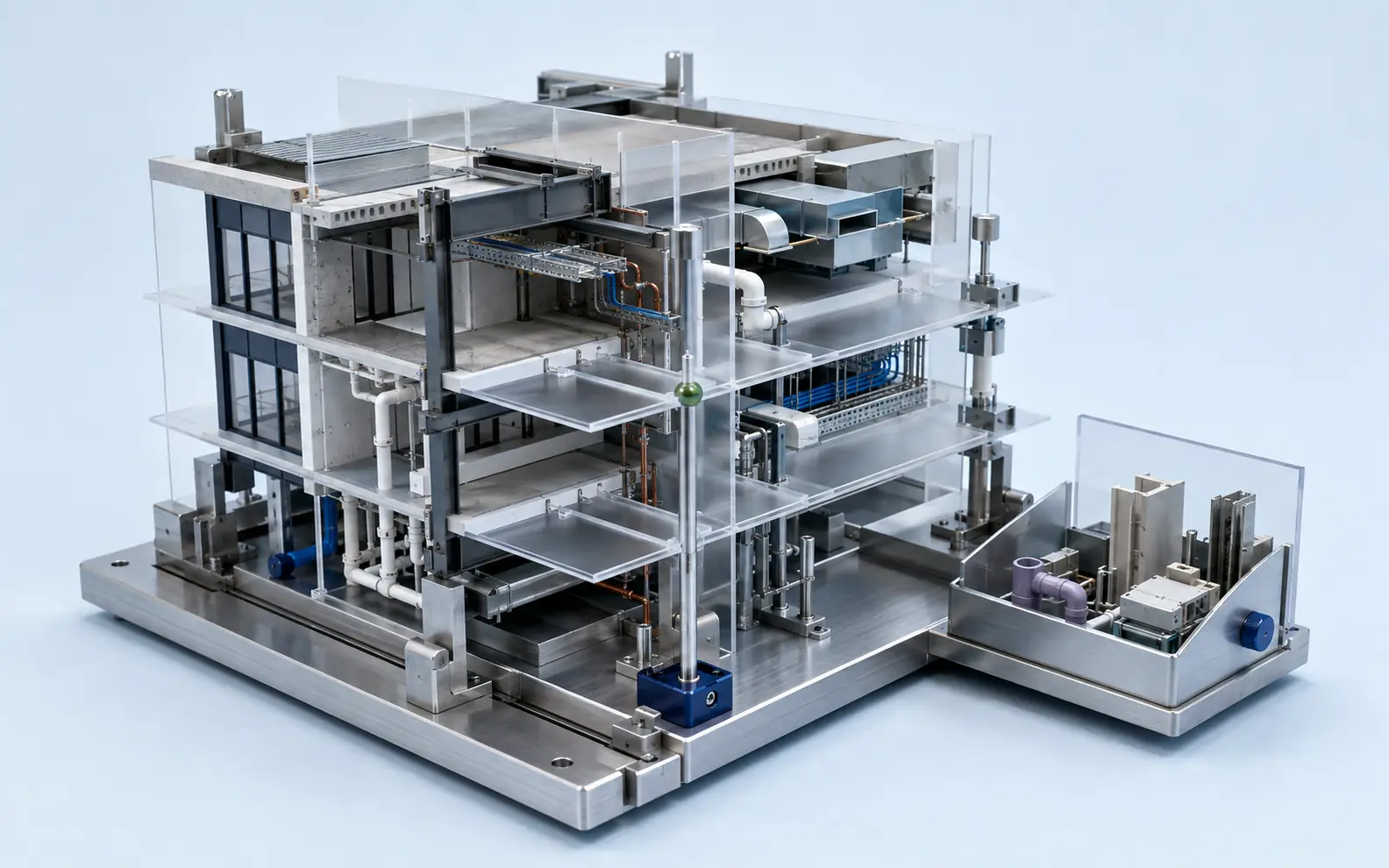

Current architecture, structure and building-services references
Native model versions and approved exchange formats
Shared coordinates, grids, levels and survey points
Model split, worksets, linked files and discipline ownership
Systems, zones and elements included in each test
Required tolerances, insulation and access allowances
Temporary, existing and demolition elements to exclude
Test names, status rules and issue-severity definitions
Coordination hierarchy and decision authority
Meeting rhythm, report format and response deadlines
Model-update and issue-closure process
This baseline prevents different teams from reviewing different model states. If the coordination brief is incomplete, we can organise a test matrix and issue workflow for client approval before production.
Hard Clashes, Soft Clashes and Useful Exceptions

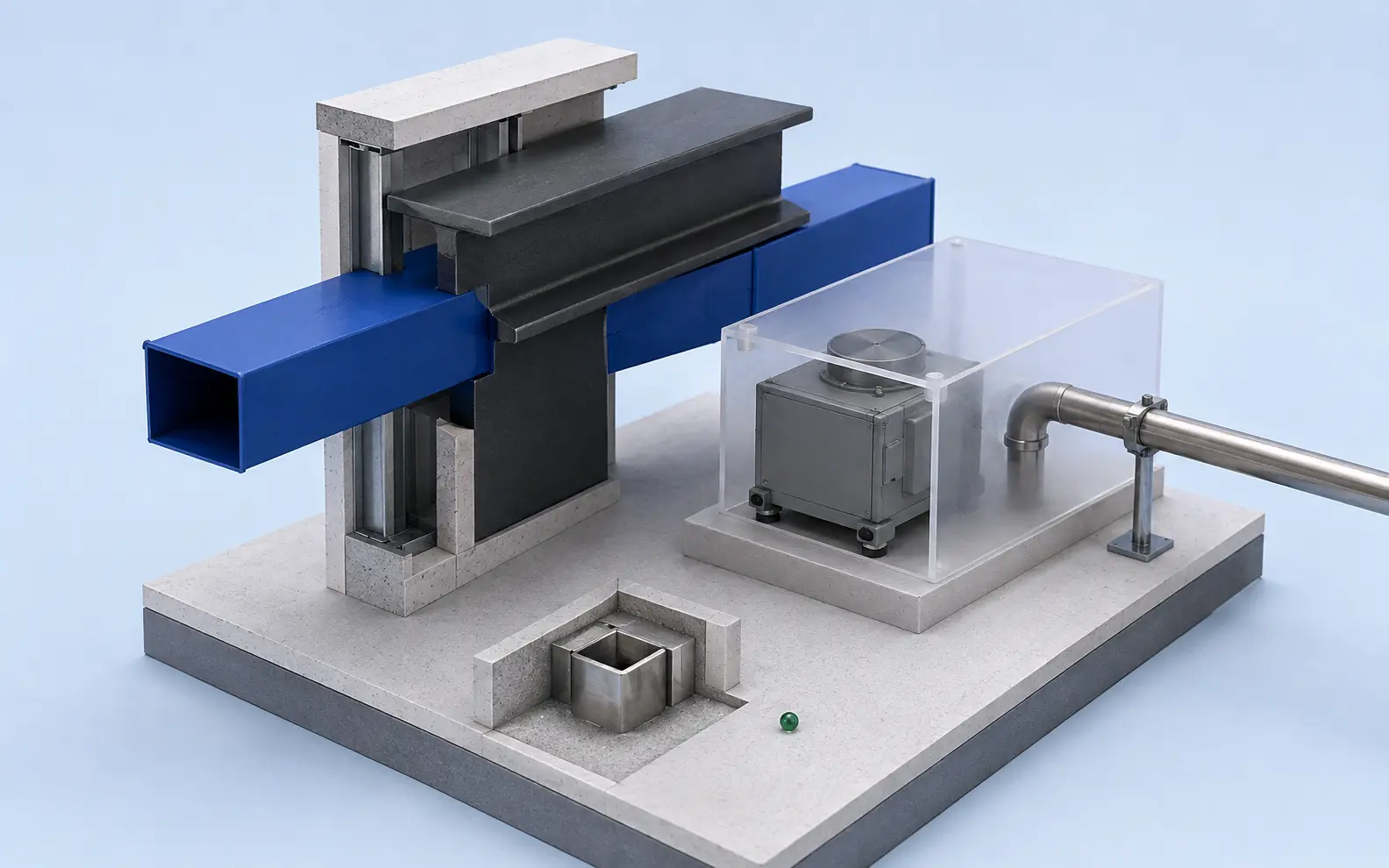

Hard Clash Detection
Hard clash detection identifies physical intersections, such as a duct passing through a beam or a cable tray occupying the same space as a pipe. The result still needs context. An intended sleeve, embedded item or placeholder may be acceptable, while a small geometric overlap may indicate a serious site conflict.
We review duplicate results, linked-model conditions and element relationships before an issue is issued. Project engineers decide the required technical response.
Soft Clash Detection
Soft clash detection assesses defined separation, access or tolerance zones. Tests may consider equipment maintenance envelopes, ceiling access, insulation, fire separation, installation tolerances or working space.
Clearance criteria must come from approved project standards, manufacturer information or responsible designers. CCSI does not invent an access allowance merely to complete a test.
Federated BIM Coordination Without Losing Ownership
Federated BIM coordination brings accepted architecture, structure and trade models into a shared review environment. Native model ownership remains with the originating discipline unless the project responsibility matrix states otherwise.
We verify coordinates, link status, units and revision dates before federation. Viewpoints, search sets and tests can then be organised by building, floor, zone, system and responsible party.
Architectural structural MEP coordination commonly examines ceiling zones, shafts, risers, plant rooms, equipment access, façade interfaces, openings and congested corridors. Specialist systems can be added where reliable references are available.
Navisworks Testing and Clash Report Generation
Navisworks clash detection can apply repeatable tests across model revisions. We configure search sets and test pairs around the approved coordination matrix rather than running every category against every other category.
Results may be grouped by location, system, likely responsibility or common root cause. Duplicate viewpoints and insignificant contacts are removed according to agreed rules. Each retained issue can include:
Controlled issue number and status
Model and element references
Building, level and zone
Clash or clearance type
Viewpoint and concise description
Assigned discipline or responsible party
Date identified and required response
Decision, comment and closure evidence
Clash report generation may produce Navisworks, BCF, spreadsheet, PDF or common data environment outputs. File names and issue identifiers are kept consistent so comments can be traced across meetings, reports and model updates.
From Detection to an Authorised Resolution
Clash software reports a condition; it does not provide a complete engineering solution. A valid decision may require input from architecture, structure, MEP design, specialist contractors, manufacturers, construction planning and commercial teams.
Our clash resolution services support this controlled process. We can prepare viewpoints, compare route options supplied by the responsible teams, record decisions and apply approved changes to models within our scope.
We do not choose a route solely because it clears the current view. A change may affect pressure loss, drainage fall, cable capacity, fire strategy, access, structural integrity, procurement or installation sequence.
Making Model Coordination Meetings Productive
Model coordination meetings work best when attendees review a prioritised set of decisions rather than an unfiltered list of software results. Before a meeting, issues can be grouped by zone, severity, responsibility and programme need.
We can prepare coordination views, agenda registers and updated status reports. During or after the meeting, authorised comments are attached to the relevant issue. Items requiring further calculation, design approval or site input remain open and visibly assigned.
The experienced coordinator maintains the record, while the project’s authorised parties own the technical outcome.
Constructability Review Has a Defined Boundary
Constructability review may examine access, congestion, openings and sequence interfaces. It does not replace contractor assessments of construction methods, temporary works, safety, logistics or fabrication. We document observable conditions against client-issued criteria and return decisions to qualified project teams.
Updating Coordinated Revit Models
Once approved, coordinated Revit models can be updated under controlled authorship. Changes remain connected to issue identifiers or formal instructions.
Checks may cover connectivity, categories, systems, levels, worksets, warnings and drawing impact. Closure requires the accepted change to pass the relevant test again.
A Six-Stage Coordination Cycle
1. Model Intake and Version Register
We log files, authors, dates, zones and coordinates. Conflicting references become queries.
2. Federation and Readiness Check
Models are aligned for inclusion, with temporary or unreliable content identified before testing.
3. Rule-Based Testing
Approved tests are run by system and zone, then grouped and reviewed by a human coordinator.
4. Issue Assignment and Decision
Reports go to named parties who evaluate options and authorise technical actions.
5. Model Revision and Retest
Approved changes are incorporated by the responsible author. Relevant tests are rerun and connected issues are reviewed for closure.
6. Professional Milestone Check
The reviewer confirms versions, test coverage, issue status, decision records and outstanding risks before submission.
Coordination Quality Controls
Depending on scope, checks may include:
Model origin, units, levels and coordinate alignment
Accepted file versions and linked-model completeness
Search-set membership and test-pair coverage
Tolerances and clearance criteria against approved rules
Duplicate, inactive and grouped-result handling
Viewpoint clarity and element identification
Issue ownership, comments and status consistency
Authorised resolution records and retest evidence
Native model, NWC, IFC, BCF and report completeness
Open-item visibility at the required milestone
These controls assess coordination-process quality. They do not certify engineering design, fabrication, construction safety or statutory compliance.
This boundary defines our BIM coordination and clash detection solution and keeps authority transparent.
